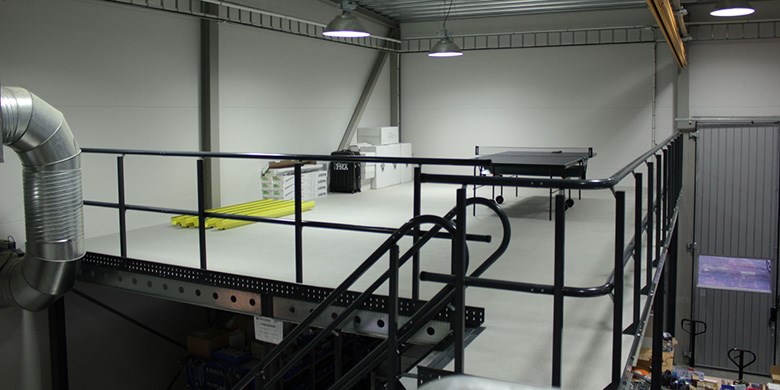

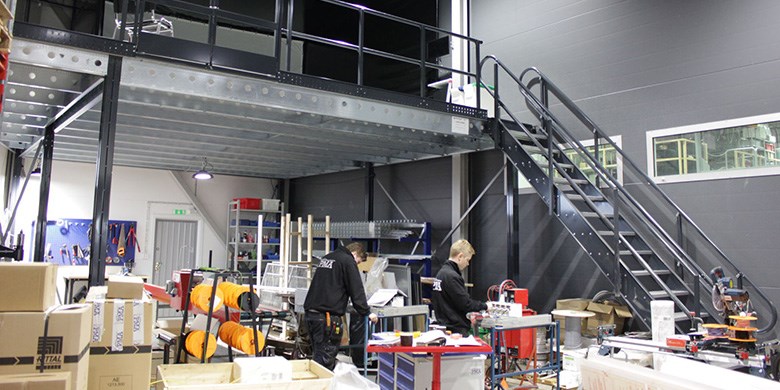

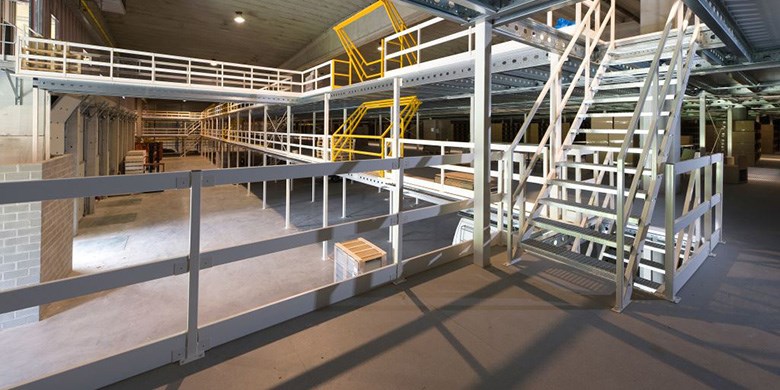

Our Mezzanine Flooring Structures provide you with a cost-efficient way to create extra floor space in your existing buildings. Simple yet effective, you can combine the uprights and beams to form heavy duty, multi-functional structures.
The system includes high-quality stairways, strong railings and three different kinds of pallet gates to suit even the most complex of warehousing or storage requirements. Totally demountable and reusable, it's a far more economical solution compared to concrete constructs.
Mezzanine Floor Structures offer the following features and benefits as standard:
- Multifunctional for a variety of users
- Up to 1000kg/m2
- A span up to 10 meters
- A more economical solution than concrete
- Easy to erect in existing buildings
- Light transparent (with steel grid floors)
- Free-standing (no additional loads on building columns)
- Minimal additional pressure on the foundation floor

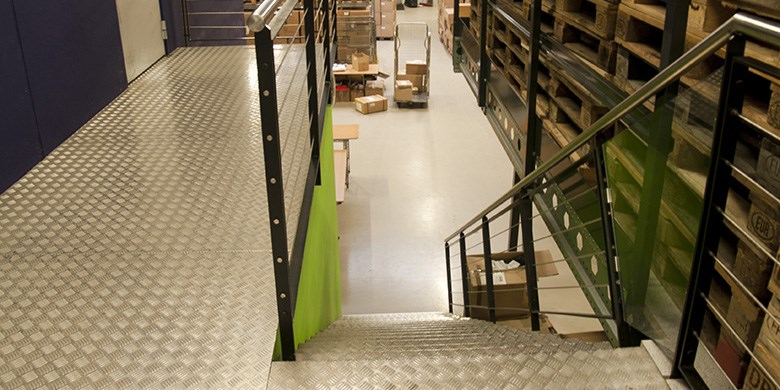

All Mezzanine floor railings, stairs and pallet gates have a scratch-resistant, powder-coated finish, and meet all the strictest of European compliance and safety regulations.
With a mezzanine floor, HI280 shelf floor or P90 pallet racking floor there are several options when it comes to choosing the type of floor.
Light output, any fire requirements and whether or not to use pallet trolleys on the floors are of importance.
Chipboard flooring (thickness 38 mm.)
Affordable and reliable standard solution. Optionally provided with a white finish for optimal light reflection. The top surface is either standard chipboard or can be finished with an anti-slip layer.

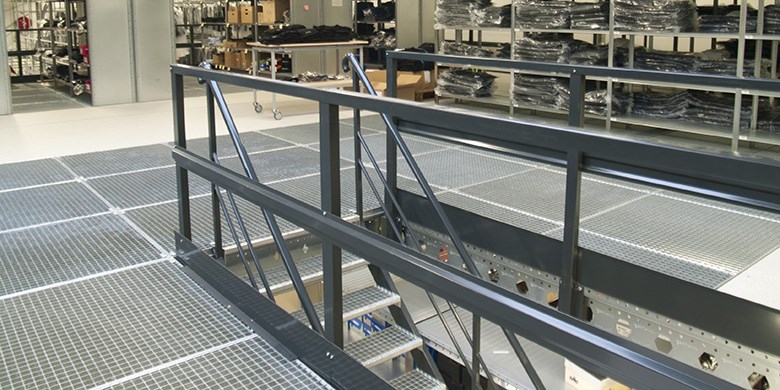

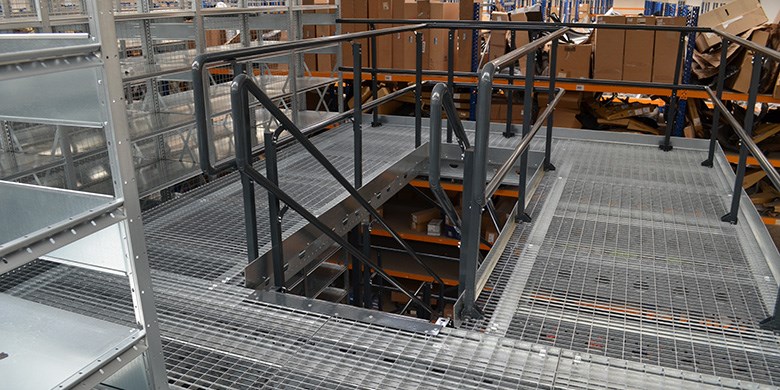

Steel grid floors
Steel grid floors have the advantage of allowing natural daylight to pass through which radiates out illuminating the area beneath.
The fire brigade can also specify open grid floors in combination with smoke flues and sprinkler systems.
Steel grid floors are very strong, long lasting and can be used in combination with pallet trolleys when a fine mesh is used.
