Dexion Wiremesh Decking & Shelving is designed to sit on your existing beams and act as a shelf. Light and easy to install, it offers your teams an efficient and versatile alternative to timber decking and solid steel panel solutions.

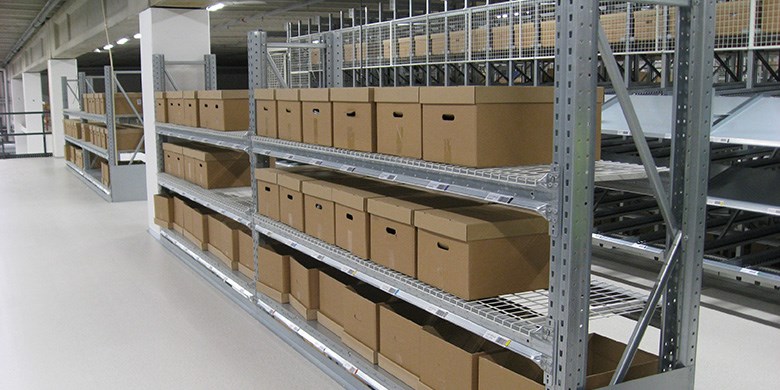

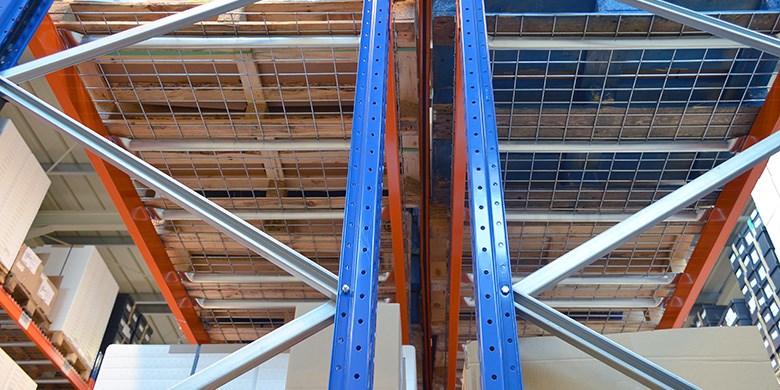

Wiremesh Decking & Shelving is suitable for small carton storage at picking levels as well as storage of non-standard pallet sizes. It also offers protection for operatives and fork lift drivers working under tunnel bays.
It's ideal in ambient warehousing as well as chill stores, as it allows for even distribution of air and therefore temperature. Optimum safety is assured as sprinkler water can permeate, offering a safer alternative to wooden shelving.
Wiremesh Decking & Shelving is available in a variety of designs:

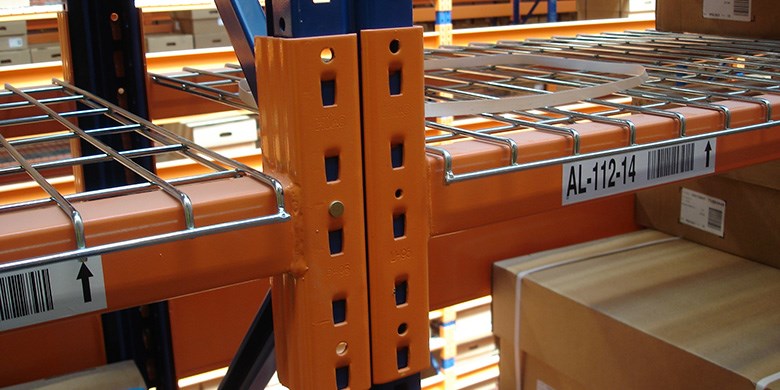

- Drop over (Waterfall design): sits on beam with mesh sloping over the front and back edges.
- Drop-in standard beam: sits inside the standard beam with a 90-degree angle of steel resting on the beam. (Available as a heavy-duty grating for walkway systems).
- Drop-in step beam: sits on the step-beam as a flush finish on top of the beam level.
Loading (per panel)
Up to 1500kg Uniform Distributed Load (UDL).

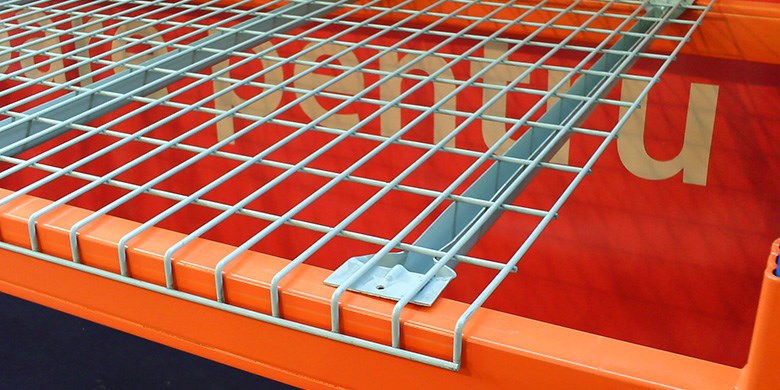

The standard design

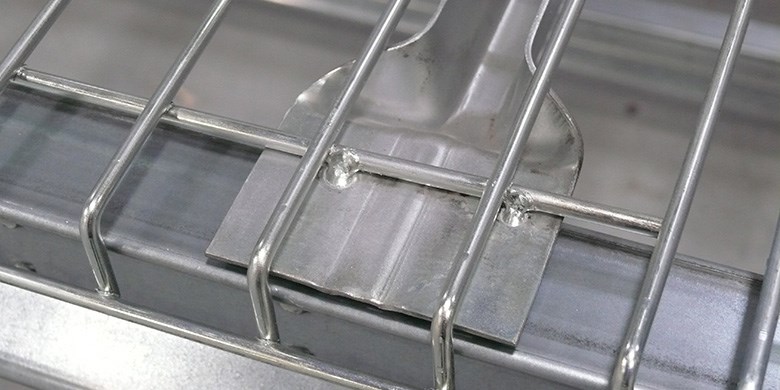

Mesh is welded to support bars that sit on the pallet racking beam, spreading the load.

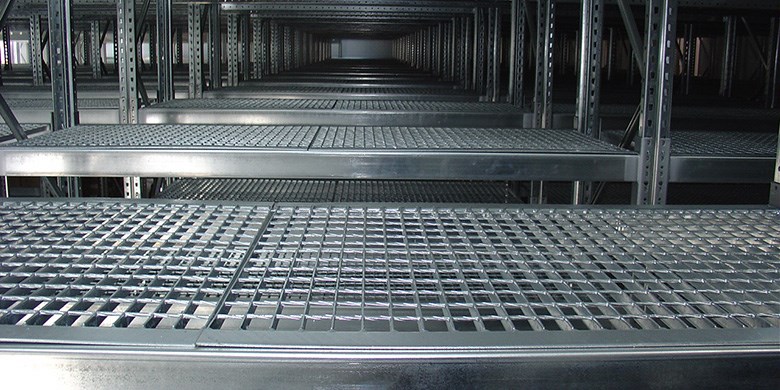

Heavy duty design
Pressed locked-steel grating with 90-degree steel angles sits on pallet racking beams.
